The Evolution of the Floppy Disk: From Innovation to Obsolescence

Before the Floppy: Early Data Storage

Before the floppy disk revolutionized personal computing, data storage was cumbersome and limited. The earliest electronic computers relied on punch cards—stiff paper cards with patterns of holes representing data. These cards, originally developed for controlling textile looms in the early 1800s, became the primary medium for computer programming and data storage from the 1890s through the 1970s.

IBM’s punch card system, standardized in 1928 with their 80-column format, dominated the industry. Each card held only 80 characters (bytes) of information, requiring thousands of cards for programs and data. Magnetic tape emerged in the 1950s as an improvement, offering greater storage capacity and faster access, but was still sequential rather than random access, limiting its flexibility.

Hard disk drives appeared in the 1950s, with IBM’s RAMAC 305 in 1956 being the first commercial system. However, these early hard drives were massive, expensive units found only in data centers. The need for a portable, affordable storage medium that offered random access capabilities remained unfilled until the floppy disk’s invention.

The Invention of the Floppy Disk

The floppy disk was invented by IBM engineers led by Alan Shugart in 1967. The original design, called the “memory disk” or “flexible disk,” was an 8-inch disk encased in a square protective jacket lined with fabric that cleaned the disk as it rotated. IBM initially developed it as a convenient way to load microcode into their System/370 mainframes.

The first commercially available floppy disk drive was IBM’s 23FD, introduced in 1971. The original 8-inch disk stored about 80 kilobytes of data—modest by today’s standards but revolutionary at the time. The name “floppy disk” referred to the flexible magnetic medium inside the protective case, which was actually quite bendable.

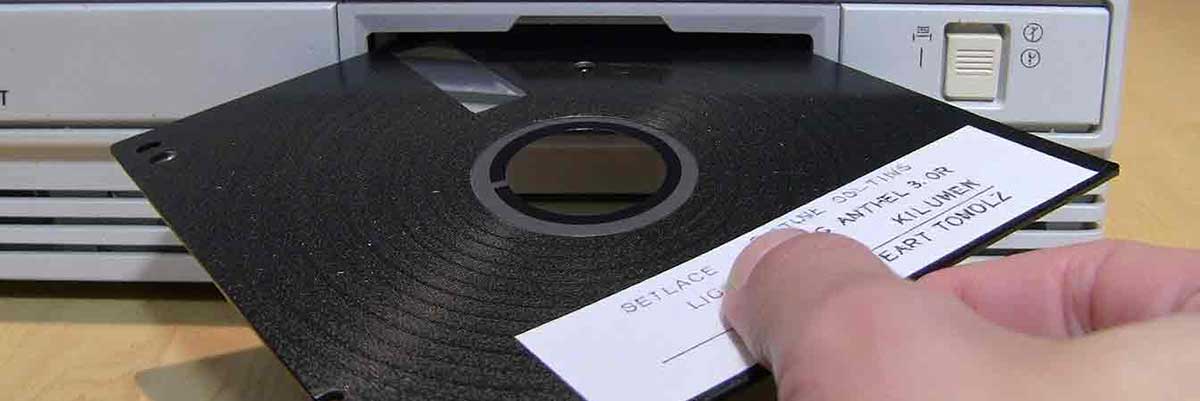

In 1976, Shugart Associates (founded by Alan Shugart after leaving IBM) introduced the 5.25-inch minifloppy, which became the standard for the first generation of personal computers. Sony later developed the 3.5-inch microfloppy in 1981, which offered greater durability through its rigid plastic case with a metal shutter, eventually storing up to 1.44 megabytes in its high-density format.

How Floppy Disks Transformed Computing

The floppy disk solved several critical challenges that had limited computing’s accessibility:

  1. Portability: For the first time, users could easily transport data between computers without telecommunications.
  2. Random access: Unlike sequential tape, floppy disks allowed immediate access to any file stored on the medium.
  3. Affordability: Both the drives and disks were relatively inexpensive, making them accessible for personal computers.
  4. Ease of use: The simple insert-and-read/write operation made computing more accessible to non-specialists.

The floppy disk played a crucial role in the personal computer revolution, serving as the primary means of software distribution, data backup, and file transfer. Operating systems, applications, games, and personal files were all shared via floppy disks, creating a fundamental shift in how people interacted with computers.

IBM and Intellectual Property

IBM played a complex role in the floppy disk’s intellectual property landscape. While they patented the original design (U.S. Patent 3,668,658), IBM chose not to aggressively enforce exclusivity. This approach reflected their business strategy at the time—IBM made most of their profit from hardware sales, not licensing technology.

By allowing relatively open use of the floppy disk design, IBM fostered its widespread adoption, which in turn created demand for IBM’s computer systems. This strategy helped establish industry standards rather than proprietary systems, ultimately benefiting IBM as the market leader.

IBM did maintain some control through their patents, but largely focused on selling drives and disks rather than licensing the technology. Their approach allowed companies like Shugart Associates, Memorex, and others to develop compatible and improved versions, leading to rapid innovation in the field.

The Decline and Legacy of the Floppy

The floppy disk’s decline began in the late 1990s as its limited capacity became increasingly problematic. The standard 1.44MB capacity that had seemed generous in the 1980s became insufficient as file sizes grew with graphical user interfaces, multimedia content, and larger software applications.

Several factors hastened the floppy’s obsolescence:

  1. CD-ROM drives became standard in the mid-1990s, offering 650MB of storage—equivalent to about 450 floppy disks.
  2. USB flash drives, introduced in 2000, provided greater capacity, durability, and speed while maintaining portability.
  3. Internet connectivity enabled file transfers without physical media.
  4. Higher capacity needs for operating systems and applications exceeded what floppies could reasonably provide.

Apple’s iMac, released in 1998, was the first mainstream computer to completely omit a floppy drive, a controversial decision at the time that proved prescient. By 2007, even Dell and other PC manufacturers had made floppy drives optional rather than standard. Sony, the last major manufacturer of floppy disks, finally ceased production in 2011.

Despite their obsolescence, floppy disks left an enduring legacy. The 3.5-inch floppy icon became the universal symbol for “save” in software interfaces—a skeuomorphic reminder that persists long after the physical medium disappeared. More importantly, the floppy disk established the paradigm of portable, user-controlled storage that continues with today’s USB drives and cloud storage services.

Ironically, some legacy systems in industrial equipment, aviation, and even nuclear facilities continued using floppy disks well into the 2010s, with the U.S. nuclear arsenal reportedly using 8-inch floppies until 2019. These lingering applications demonstrated both the reliability of the technology and the challenge of updating critical systems.

The floppy disk’s journey from innovation to obsolescence illustrates technology’s constant evolution, but its fundamental contribution—democratizing data mobility—remains at the core of our digital experience today.

Who invented the floppy disk?

IBM engineer Alan Shugart led the team that invented the floppy disk in 1967. The first commercial floppy, the 8-inch disk, was introduced by IBM in 1971. Shugart later founded Shugart Associates, which developed the smaller 5.25-inch floppy in 1976.

Storage capacity evolved significantly: early 8-inch disks held 80KB, standard 5.25-inch disks stored 360KB, while the ubiquitous 3.5-inch high-density disks managed 1.44MB. Some specialized formats reached 2.88MB. For perspective, a single modern photo would likely exceed an entire floppy’s capacity.

The name “floppy” referred to the flexible magnetic disk inside the protective case. The actual storage medium was a thin, bendable disk coated with magnetic material. This was especially apparent with 8-inch and 5.25-inch disks, which had notably flexible casings.

The 5.25-inch disks used a small notch that, when covered with tape, prevented writing. Counterintuitively, 3.5-inch disks reversed this logic—sliding the tab to reveal the hole made the disk write-protected. This physical feature ensured important data couldn’t be accidentally overwritten.

The decline began in the late 1990s with the rise of CD-ROMs and Internet file sharing. Apple’s 1998 iMac controversially omitted floppy drives entirely. By 2007, most PC manufacturers made floppy drives optional. Sony, the last major manufacturer, ceased production in 2011.

Yes, software companies developed numerous copy protection schemes. Methods included non-standard formatting, deliberately damaged sectors, hidden tracks, and physical disk modifications. The “dongle disk” required insertion during program use, while some disks used special marks unreadable by standard copying tools.

The 3.5-inch format offered key advantages: higher storage capacity (initially 720KB, later 1.44MB), better physical protection with rigid plastic cases and metal shutters covering the disk surface, smaller size for portability, and improved reliability. These benefits made them the standard by the early 1990s.

Surprisingly, yes. Some legacy industrial equipment, medical devices, and specialized systems still use floppies. The U.S. nuclear arsenal reportedly used 8-inch floppies until 2019. Certain industries maintain floppy systems because updating critical infrastructure poses significant technical and security challenges.
